Brass Push in Fittings with O-ring (BSPP, G)

Application

1. All brass One-touch joints used in pneumatic piping
2. Used for a wide variety of modes to meet all needs.

Features
1. Quick installation, simple and flexible, space-saving, easy to connect tube by one touch.
2. Even after installation, the direction of tubing can be changed freely, all parallel thread have o-ring with fine seal performance.
3. Nickel-Plated brass body ensures anti-corrosion and anti-contamination.
4. Fittings are equipped with a Gasket, O-ring and Teflon-treatment on the thread.

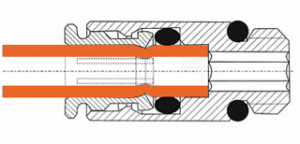

Brass Push in Fittings with O-ring
 Fluid Admitted Air, Water, Steam
 Max Working Pressure     2MPa       290PSI
 Working Temperature -20—120°C        -4～248°F
 Applicable Tube PU / PA / FEP / PFA
 Body Nickel Plated Brass
 O-ring FKM (Viton)

Cautions in Application of Tube Joint

Thread Standard and Type

BSPP, G — 55° Parallel Pipe Thread
G1/8 G1/4 G3/8 G1/2
BPC-G Male Stud
BPC-G
BPOC-G Hex Male Stud
BPOC-G
BPL-G Male Swivel Elbow
BPL-G
BPLL-G Extended Male Swivel Elbow
BPLL-G
BPLF-G Female Swivel Elbow
BPLF-G
BPCF-G Female Stud
BPCF-G
BPCF-G Female Stud
BPB-G
BPD-G Male Swivel Run Tee
BPD-G
BPX-G Male Swivel Y
BPX-G
BPCJ-G Male Stand Pipe
BPCJ-G
BPH-G Male Banjo
BPH-G
BDPH-G Double Male Banjo
BDPH-G
BTPH-G Triple Male Banjo
BTPH-G
BPHF-G Female Banjo
BPHF-G
BPK-G Male Banjo
BPK-G
BDPK-G Double Male Banjo
BDPK-G
BTPK-G Triple Male Banjo
BTPK-G
