One Touch Tube Fittings with O-Ring (BSPP, G Thread)

One Touch Tube Fittings with O-ring (BSPP Push in Fittings, BSPP Pneumatic Fittings) are equipped with O-ring on the thread, by which sealing is very well, and suitable for G and BSPP thread. Working pressure from 0~1.0Mpa (0~150psi), Working temperature from 0~60ºC (32~140ºF).

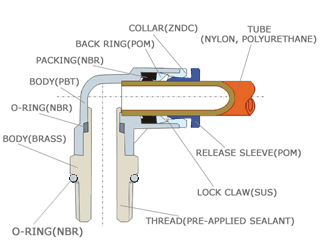

one-touch-fittings
 Fluid Admitted Air, Vaccum, Water(note)
 Working Pressure 0∼1.0MPa | 0∼150psi
 Proof Pressure 3.0Mpa | 435psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature 0∼60°C | 32~140°F
 Applicable Tube PU / PA / PE / PVC
 Body Nickel Plated Brass & PBT
 Seal, O-ring NBR
 Lock Claw Stainless Steel(SUS)

Note: Applicable for general industrial water.

Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
BSPP, G — 55° Parallel Pipe Thread
G1/8 G1/4 G3/8 G1/2
pneumatic-fittings-pc-g
PC-G
pneumatic-fittings-pl-g
PL-G
pneumatic-fittings-pll-g
PLL-G
pneumatic-fittings-plf-g
PLF-G
pneumatic-fittings-poc-g
POC-G
pneumatic-fittings-pcf-g
PCF-G
pneumatic-fittings-pb-g
PB-G
pneumatic-fittings-pbf-g
PBF-G
pneumatic-fittings-pd-g
PD-G
pneumatic-fittings
PDF-G
pneumatic-fittings-px-g
PX-G
pneumatic-fittings-pxf-g
PXF-G
pneumatic-fittings-pkb-g
PKB-G
pneumatic-fittings-pkd-g
PKD-G
pneumatic-fittings-ph-g
PH-G
pneumatic-fittings-phf-g
PHF-G
pneumatic-fittings-pmf-g
PMF-G
one-touch-tube-fittings-phx-g
PHX-G
one-touch-tube-fittings-phd-g
PHD-G
one-touch-tube-fittings-pht-g
PHT-G
one-touch-tube-fittings-phy-g
PHY-G
one-touch-tube-fittings-phdy-g
PHDY-G
