Pneumatic Fittings, Push in Fittings (PT, R, BSPT, NPT)

Pneumatic Fittings, Plastic Push in Fittings (PT, R, BSPT, NPT) come in a variety of types, moulds and sizes to satisfy various tube demands. Accept metric and inch tube, and PT(R, BSPT), NPT thread. Working pressure from 0~1.0Mpa (0~150psi), Working temperature from 0~60ºC (32~140ºF). Accommodate metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8″ to 1/2″. Thread sizes range is from 1/8 to 1/2.

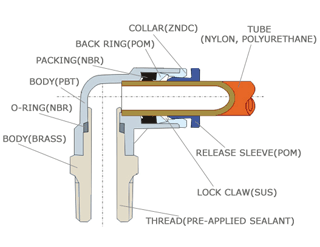

push-in-fittings-structure
 Fluid Admitted Air, Vaccum, Water(note)
 Working Pressure 0∼1.0MPa | 0∼150psi
 Proof Pressure 3.0Mpa | 435psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature 0∼60°C | 32~140°F
 Applicable Tube PU / PA / PE / PVC
 Body Nickel Plated Brass & PBT
 Seal, O-ring NBR
 Lock Claw Stainless Steel(SUS)

Note: Applicable for general industrial water.

Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread Metric Thread
R1/8 R1/4 R3/8 R1/2 M5 x 0.8 M6 x 1 M8 x 1 M10 x 1 M12 x 1.25 M14 x 1.5 M16 x 1.5 M20 x 1.5
UNF NPT — 60° American Standard Taper Pipe Thread
10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2
pneumatic-fittings-pc
PC
pneumatic-fittings-pl
PL
pneumatic-fittings-pll
PLL
pneumatic-fittings-plf
PLF
pneumatic-fittings-plm
PLM
PCF
PB
PBF
pneumatic-fittings-pd
PD
pneumatic-fittings-pdf (1)
PDF
pneumatic-fittings-px
PX
pneumatic-fittings-pxf
PXF
pneumatic-fittings-pkb
PKB
pneumatic-fittings-pkd
PKD
pneumatic-fittings-ph
PH
pneumatic-fittings-phf (1)
PHF
pneumatic-fittings-pmf
PMF
pneumatic-fittings-pu
PU
pneumatic-fittings-pg
PG
PV
pneumatic-fittings-pvg
PVG
pneumatic-fittings-pe
PE
pneumatic-fittings-peg
PEG
pneumatic-fittings-pge
PGE
pneumatic-fittings-py
PY
pneumatic-fittings-pw
PW
pneumatic-fittings-pgj
PGJ
pneumatic-fittings-plj
PLJ
pneumatic-fittings-pyj
PYJ
pneumatic-fittings-pwj
PWJ
pneumatic-fittings-pij
PIJ
pneumatic-fittings-pig
PIG
pneumatic-fittings-pkj
PKJ
pneumatic-fittings-pp (1)
PP
pneumatic-fittings-pm
PM
pneumatic-fittings-pza
PZA
pneumatic-fittings-pk
PK
pneumatic-fittings-pkg
PKG
pneumatic-fittings-PT
PT
pneumatic-fittings-PHX
PHX
pneumatic-fittings-phd
PHD
pneumatic-fittings-PHT
PHT
pneumatic-fittings-PHY
PHY
pneumatic-fittings-PHDY
PHDY
pneumatic-fittings-PPF
PPF
extended-push-in-female-elbow
PLFE
pneumatic-fittings-poc-round-male-straight
POC
