Push to Connect Fittings (PT, R, BSPT, NPT) – Grey Body

We are also manufacturing grey push in fittings also called grey push to connect fittings. It’s common pneumatic fittings. The grey push in fittings look clean and elegant. We have a complete line of grey push in fittings that accommodate metric tubing from 4mm to 16mm and imperial tubing ranging from 1/8″ to 1/2″.

Part Color of Grey Push in Fittings
Release Sleeve: Grey
Body: Grey
Thread: Nickel Plated Brass

We also offer Black body push to connect fiitting .

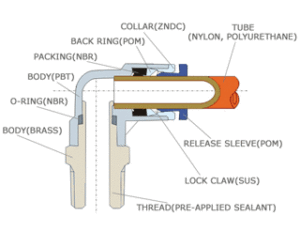

push-in-fittings-structure
 Fluid Admitted Air, Vaccum, Water(note)
 Working Pressure 0∼1.0MPa | 0∼150psi
 Proof Pressure 3.0Mpa | 435psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature 0∼60°C | 32~140°F
 Applicable Tube PU / PA / PE / PVC
 Body Nickel Plated Brass & PBT
 Seal, O-ring NBR
 Lock Claw Stainless Steel(SUS)

Note: Applicable for general industrial water.

Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread Metric Thread
R1/8 R1/4 R3/8 R1/2 M5 x 0.8 M6 x 1 M8 x 1 M10 x 1 M12 x 1.25 M14 x 1.5 M16 x 1.5 M20 x 1.5
UNF NPT — 60° American Standard Taper Pipe Thread
10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2
WPC Male Straight Connector
WPC Male Connector
WPOC Internal Hexagon Male Straight Connector
WPOC Internal Hexagon Male Connector
WPL Male Elbow Swivel
WPL Male Elbow
WPLL Extended Male Elbow Swivel
WPLL Extended Male Elbow
PLF Female Elbow Swivel
WPLF Female Elbow
WPLM Equal Bulkhead Union Elbow
WPLM Bulkhead Union Elbow
push-in-fittings-female-straight-connector
WPCF Female Connector
push-in-fittings-male-branch-tee
WPB Male Branch Tee
push-in-fittings-female-branch-tee
WPBF Female Branch Tee
push-in-fittings-male-run-tee
WPD Male Run Tee
push-in-fittings-female-run-tee
WPDF Female Run Tee
push-in-fittings-male-y
WPX Male Y
push-in-fittings-female-y
WPXF Female Y
push-in-fittings-male-branch-triple
WPKB Triple Male Branch
push-in-fittings-male-branch-triple-reducer
WPKD Triple Male Branch Reducer
push-in-fittings-male-banjo
WPH Male Banjo Elbow
push-in-fittings-male-banjo
WPHF Female Banjo Elbow
push-in-fittings-bulkhead-female-straight
WPMF Bulkhead Female Connector
push-in-fittings-union-straight
WPU Union Straight
push-in-fittings-union-reducer
WPG Union Straight Reducer
push-in-fittings-union-elbow
WPV Union Elbow
push-in-fittings-union-elbow-reducer
WPVG Union Elbow Reducer
push-in-fittings-union-tee
WPE Union Tee
push-in-fittings-union-tee-reducer
WPEG Union Tee Reducer
push-in-fittings-union-tee-reducer-peg
WPGE Union Tee Reducer
push-in-fittings-union-y
WPY Union Y
push-in-fittings-union-y-reducer
WPW Union Y Reducer
push-in-fittings-plug-in-reducer
WPGJ Plug-in Reducer
push-in-fittings-plug-in-elbow
WPLJ Plug-in Elbow
push-in-fittings-plug-in-elbow-reducer
WPLGJ Plug-in Elbow Reducer
push-in-fittings-plug-in-y
WPYJ Plug-in Y
push-in-fittings-plug-in-y-reducer
WPWJ Plug-in Y Reducer
push-in-fittings-bulkhead-union
WPM Bulkhead Union
push-in-fittings-union-cross
WPZA Union Cross
push-in-fittings-union-branch
WPK Union Branch
push-in-fittings-union-branch-reducer
WPKG Union Branch Reducer
