Quick Couplings (Two Touch)

Quick coupling with an automatic shut-off valve built in the socket is widely used to connect air and low pressure fluid lines. Quick coupling provides connections in systems that involve the flow of air, water, oil, or gas. The spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple. It is easy to do, but two hands are normally required.

• Shut-off valve built inside.
• Push-to-connect design.
• Available in various end configurations to satisfy a wide range of pneumatic applications.
• Important steel parts are hardened for high durability.

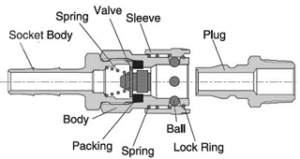

quick-couplers
 Fluid Admitted Air, Water, Oil
 Working Pressure 0—1.0MPa | 0—150psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature 0—60°C | 32~140°F
 Applicable Tube PU / PA / PE / PVC
 Body Chrome Plated Steel
 Seal NBR
SH Socket Hose Stem
SH
SH Socket Hose Stem
SM
Socket Nut
SP
SF Socket Female Thread
SF
PH Plug Hose Stem
PH
PM Plug Male Thread
PM
PP Plug Nut
PP
PF Plug Female Thread
PF
SMV Socket V
SMV
SMY Socket Y
SMY
MLV Two Ports Socket
MLV
MLY Multi-ports Socket
MLY
SPWS Socket Nut with Wire Spring
SPWS
PPWS Plug Nut with Wire Spring
PPWS
SML-3-Ports-quick-couplings
SML-3 Ports
Inline 4 way quick couplings
SML-4 Ports
SML-5 Ports
Inline 6 way quick couplings
SML-6 Ports
