316 Stainless Steel Push in Fittings (PT, R, BSPT, NPT)



316 stainless steel push-in fittings provide easy tube insertion and removal for rapid assembly. 316 stainless steel push in fittings are suitable for applications in corrosive environments where brass and acetal are typically prohibited.

Advantages of our 316 stainless steel push-in fittings:

• Resistant to aggressive environments
• Suitable for food and beverage applications
• Elbows and Tees are made from forged 316 stainless steel
• Elbows and Tees can be 360° swiveled
• FKM (Viton) o-ring sealing in all stainless steel push in fittings
• Can be used with steam

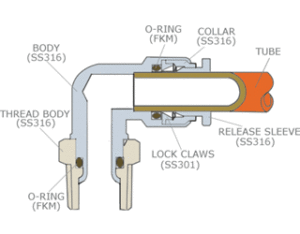

stainless-steel-push-in-fittings-structure
Fluid Admitted Air, Vaccum, Steem
 Working Pressure 0∼2.0MPa | 0∼290psi
 Proof Pressure 3.0Mpa | 435psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature -20~150°C | -4~302°F
 Applicable Tube PU / PA / PE / PVC …
 Body 316 Stainless Steel
 Seal, O-ring FKM (Viton)
 Meets FDA-compliant
Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread Metric Thread
R1/8 R1/4 R3/8 R1/2 M5 x 0.8 M6 x 1 M8 x 1 M10 x 1 M12 x 1.25 M14 x 1.5 M16 x 1.5 M20 x 1.5
UNF NPT — 60° American Standard Taper Pipe Thread
10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2
stainless-steel-push-in-fittings-male-straight-SPC
SPC
SPOC Hexagon Male Connector
SPOC
SPL Male Elbow Swivel
SPL
SPLF Female Swivel Elbow
SPLF
SPCF Female Connector
SPCF
SPB Male Branch Tee
SPB
stainless-steel-push-in-fittings-male-banjo-SPH
SPH
stainless-steel-push-in-fittings-union-straight-SPU
SPU
SPG Union Straight Reducer
SPG
SPE Union Tee
SPE
SPEG Union Tee Reducer
SPEG
SPGE Union Tee Reducer
SPGE
SPY Union Y
SPY
SPW Union Y Reducer
SPW
SPYG Union Y Reducer
SPYG
SPV Union Elbow
SPV
SPM Bulkhead Union
SPM
SPP Plug
SPP
SPGJ Plug-in Reducer
SPGJ
SPL-PR Male Elbow Swivel With Plastic Sleeve
SPLP
SPEP Male Branch Tee with Plastic Sleeve
SPEP
