Stainless Steel Compression Tube Fittings

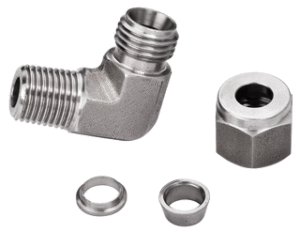

double-ferrules-stainless-steel-compression-tube-fittingsStainless steel compression tube fitting is made of 304/316 stainless steel, and is a mechanism used both to seal and to grip tubing. This stainless steel compression tube fittings consist of four parts: body, a front ferrule, a back ferrule and nut. The mechanical advantage and geometry of this kind of fitting produces a leaktight assembly in high-pressure, high-vacuum, and high-vibration applications. This fittings are used in oil & gas industries, petro chemicals, power plant, steel industries, chemical industries, pharmaceutical industries, fertilizers, hydraulic and pneumatic, marine and any process industry. Accommodate metric tube O.D ranging from 4 mm to 16 mm, inch tube ranging from 1/8″ to 1/2″; Accommodate thread types and sizes ranging from BSPT, BSPP and NPT 1/8 to 1/2.

Fluid Admitted Water, Oil, fuel, Compressed Air, Chemicals, Disinfectants or Food Drinks
Max Working Pressure 400 bar | 6000 psi Depending on Tubing Material
Working Temperature -73°C—316°C | -100°F—600°F Depending on Tubing Material
Body 304/316 Stainless Steel
Front Ferrule 304/316 Stainless Steel
Back Ferrule 304/316 Stainless Steel
Nut 304/316 Stainless Steel
Applicable Tube Stainless Steel, Carbon Steel, Copper Aluminum and Teflon Tubing
Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread Metric Thread*
R1/8 R1/4 R3/8 R1/2 M5x0.8 M6x1 M8x1 M10x1 M12x1.25 M14x1.5 M16x1.5 M20x1.5
UNF NPT – 60°American Standard Taper Pipe Thread BSPP, G – 55° Parallel Pipe Thread
10-32 UNF 1/8 NPT 1/4 NPT 3/8 NPT 1/2 NPT G1/8 G1/4 G3/8 G1/2
DFSUSC Male Straight Connector
DFSUSL Male Stud Elbow
DFSUSU Union Straight
DFSUSV Union Elbow
DFSUSE Union Tee
SUSMM Hex. Nipple
