Hand Valves, Shut-off Valves

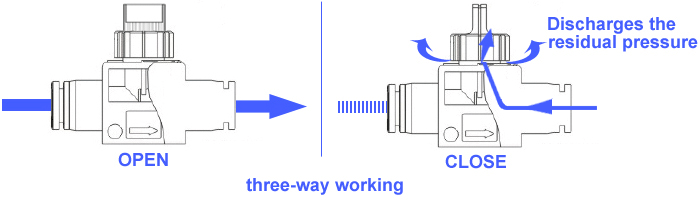

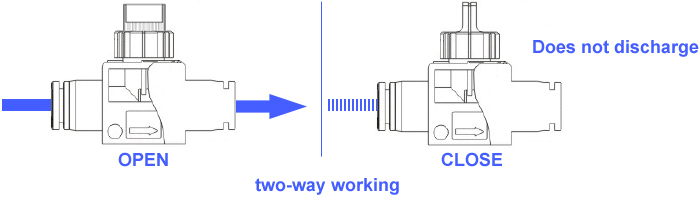

Hand valves, shut-off valves are used for turning air pressure on and off for pneumatic devices. The three-directional control hand valve, when closed, discharges the residual pressure from the output side (device). Therefore it assures safety at adjustment or repair of the connected devices. The two-directional control hand valve does not have air discharge mechanism, is suited for air supply to a tank or other devices from which the residual pressure should not be discharged. The two-directional control hand valve is also suited for the system where vacuum piping is used. Accommodate metric tubing O.D ranging from 6 mm to 12 mm, inch tube ranging from 1/8″ to 1/2″; thread sizes range is from R, PT, BSPT 1/8 to R, PT, BSPT 1/2.

Two-directional Control Hand Valve and Three-directional Control Hand Valve

two-way-hand-valves-working
three-way-hand-valves-working

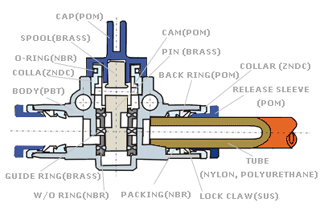

hand-valves
Fluid Admitted Air,Vacuum
Working Pressure 0—1.0 MPa |0—150 psi
Negative Pressure -100 Kpa | -29.5 In Hg
Working Temperature -0—60°C | 32~140°F
Applicable Tube PU / PA / Teflon Tubing
Body Nickel Plated Brass and PBT
Seal, O-ring NBR
Metric Tube ØD
6 mm 8 mm 10 mm 12 mm



Inch Tube ØD
1/4″ 5/16″ 3/8″ 1/2″



Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread Metric Thread*
R1/8 R1/4 R3/8 R1/2 M5x0.8 M6x1 M8x1 M10x1 M12x1.25 M14x1.5 M16x1.5 M20x1.5



UNF NPT – 60°American Standard Taper Pipe Thread BSPP, G – 55° Parallel Pipe Thread
10-32 UNF 1/8 NPT 1/4 NPT 3/8 NPT 1/2 NPT G1/8 G1/4 G3/8 G1/2
hand-shut-off-valves-hvff
HVFF Union Straight
hand-shut-off-valves-hvfs
HVFS Tube to Thread Straight
hand-shut-off-valves-hvsf
HVSF Thread to Tube Straight
hand-shut-off-valves-hvss
HVSS Male Thread Straight
hand-shut-off-valves-hvfs-g
HVFS-G Tube to BSPP, G Thread Straight
hand-shut-off-valves-hvsf-g
HVSF-G BSPP, G Thread to Tube Straight
hand-shut-off-valves-hvss-g
HVSS-G BSPP, G Thread Straight
