Full nickel plated brass push in fittings, also called brass push to connect fittings, made of forged brass (elbows, tees, banjos, union Y and cross), are suitable for typical applications include systems for pneumatic control, robotics, instrumentation, chemicals, anti-spatter or die temperature control. Accept metric and inch tube, and PT (R, BSPT), NPT thread. Working pressure up to 290psi (2Mpa or 20bar), working temperature from -20°C to 120°C (-4°F~248°F).

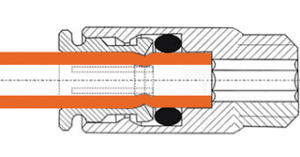

brass-push-in-fittings01
 Fluid Admitted Air, Water, Steam
 Working Pressure 0∼2.0MPa | 0∼290psi
 Proof Pressure 3.0Mpa | 435psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature -20~150°C | -4~302°F
 Applicable Tube PU/PA/PE/PVC/FEP/PFA
 Body Nickel Plated Brass / Brass
 Seal, O-ring FKM (Viton) / NBR
Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
R, PT, BSPT — 55° Taper Pipe Thread Metric Thread
R1/8 R1/4 R3/8 R1/2 M5 x 0.8 M6 x 1 M8 x 1 M10 x 1 M12 x 1.25 M14 x 1.5 M16 x 1.5 M20 x 1.5
UNF NPT — 60° American Standard Taper Pipe Thread
10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2
brass-push-in-fittings-BPC
BPC
BPOC
brass-push-in-fittings-BPL-male-swivel-elbow
BPL
BPLL
BPLF
brass-push-in-fittings-BPCF-female-elbow
BPCF
Brass Male Swivel Branch Tee
PMPB
brass Male Swivel Run Tee
PMPD
Brass Male Swivel Y
PMPY
BPMF Bulkhead Straight
BPMF
BPU Union Straight
BPU
BPG Union Reducer
BPG
Brass push-in Union Elbow
BPV
Brass push-in Union Tee fittings
BPE
BPEG Union Reducer T
BPEG
Brass push-in Union Y fittings
BPY
BPZA Union Cross
BPZA
BPP Plug
BPP
BPH Male Swivel Banjo
BPH
BDPH Double Male Swivel Banjo
BDPH
BTPH Triple Male Swivel Banjo
BTPH
BPHF Female Swivel Banjo
BPHF
BPK Male Swivel Banjo
BPK
BDPK Double Male Swivel Banjo
BDPK
BTPK Triple Male Swivel Banjo
BTPK
Brass plug-in reducer
BPGJ
BPLJ Plug-in Elbow
BPLJ
BPLGJ Plug-in Elbow Reducer
BPLGJ
