A Complete Guide to Pneumatic Fittings Types & Industrial Applications
Pneumatic fittings are the unsung core components of compressed air systems, widely used in automated production lines, packaging machinery, automotive manufacturing, electronic equipment and other industrial scenarios. Choosing the right type of pneumatic fittings directly determines the stability, air tightness and service life of the entire pneumatic system, which is why global buyers pay high attention to fitting quality and type matching.As a professional China pneumatic fittings supplier with years of manufacturing experience, FittingDeals has summed up the most commonly used pneumatic fittings categories and their targeted applications, to help engineering buyers and procurement teams make accurate selections without detours.

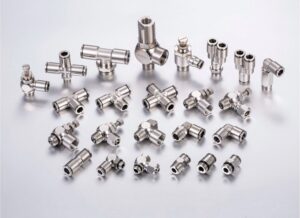

1. Main Classification of Pneumatic Fittings
The most widely used pneumatic fittings in the global industrial market are mainly divided into three core categories, each with unique structural advantages and applicable scenarios:
-
Push-in Pneumatic Fittings: Also known as one-touch fittings, this is the most popular type for quick installation. It features a push-to-connect design that requires no tools, greatly saving assembly time. It is suitable for general automation equipment, small pneumatic systems and light industrial machinery.
-
Threaded Pneumatic Connectors: With standard NPT/BSP threads, this type offers super high air tightness and pressure resistance, perfect for high-pressure compressed air systems, heavy machinery and industrial pipelines. It is the first choice for long-term stable operation of large equipment.
-
Union & Elbow Pneumatic Fittings: Used for pipeline turning, branching and docking, including elbow, tee, cross and other shapes, to meet complex pipeline layout needs in automated production lines, avoiding pipeline bending and air flow obstruction.
2. Key Application Scenarios of Pneumatic Fittings
Pneumatic fittings are not universal components, and different scenarios need to match corresponding materials and structures. Most high-quality pneumatic fittings are made of brass, stainless steel or engineering plastic, balancing durability and cost-effectiveness.
In automotive manufacturing plants, push-in fittings with high corrosion resistance are mostly selected to adapt to continuous production rhythm; in food and pharmaceutical automation lines, food-grade stainless steel pneumatic fittings are required to meet hygiene standards; in packaging machinery, lightweight plastic pneumatic fittings are preferred for flexible pipeline layout.
3. Quick Selection Tips for Buyers
1. Confirm the pipeline material and diameter first, match the fitting size accurately to avoid air leakage;
2. Check the working pressure and temperature of the pneumatic system, select fittings with corresponding pressure resistance grade;
3. Give priority to reliable suppliers with complete certification, especially China manufacturers with ISO certification, which can ensure stable quality and wholesale cost advantages.
At FittingDeals, we provide full series of pneumatic fittings, including push-in fittings, pneumatic tubes, mufflers and other supporting accessories, all manufactured in strict accordance with international standards, supporting OEM and bulk wholesale. As a trusted China supplier, we offer fast delivery and professional after-sales support for global buyers.
